Back in stock: All genres

Notes: ***B-STOCK: Box opened, product in perfect working order***


Broadcast-ready update of ARS's flagship audiophile rotary mixer. Small design changes mean even better sound quality and improved cueing. Still hand built in Japan to the highest standards.

Supplier's Notes:
Model 9100B Music Mixer

4 channel table top mixer

Model 9100B (broadcast mixer) Music Mixer Wood TYPE (Headphone Monitor Trim: Cue-Mix-Pgm special version)

ARS Model 9100B DJ Mixer is a Japanese made, 4ch. rotary mixer with world's first 3band hybrid isoeq Hi-EQ Mid-EQ Low -Iso on each channel.

This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator on the master. Potentiometer and Switch are All ALPS .

A long time in the development phase this mixer is a beautiful example of Japanese hand made precision workmanship- highly recommended.

It is designed with purist ideals with only essential features.

ARS 9100 has 3 band hybrid iso-EQ hi-EQ mid-EQ low-iso on each channel and 3band Iso on the master.

The Master Isolators can be boost of cut from +18db ~ -8.

The Ch hi-EQ mid-EQ can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -8.

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-9100 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.

Specifications
Frequency Response: +-1dB 20Hz-20Khz
Input: 3 x Phono: 47K Ohm / 5 x Line: 20K Ohm
House Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Booth Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Retrun: RCA Unbalanced Impedance 20K Ohm
Isolator Frequency Response:
3band hybrid isoeq 1-4Ch /Low-ISO /MID-EQ/HI-EQ
Master 3Band Iso: 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz boost of cut from +18db ~ -8.

Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 25w
Power Requirement: US-115V/EU-230V(Selectable)
Dimensions: (W)306 x (H)250 x (D)100 mm
Front Panel Colour: Black

Notes: A proper bargain here. Ecler's flagship rotary mixer offers all the benefits of audiophile sound quality and organic, hands-on control at a surprisingly low price point.

Supplier's Notes:
WARM4 is a professional four channel analogue rotary DJ mixer, designed and manufactured by ECLER in Barcelona. Featuring 4 phono/line channels, 2 MIC inputs, classic sharp filters and a 4th order Isolator. WARM4 includes an unique feature, an Analogue Subharmonic Synthesizer selectable per channel, specially designed to generate and reinforce ultra-low frequencies.

Applications

Night Clubs
DJ studios
Itinerant DJ performances

Audio performances

Inputs:

Number of Inputs:
LINE: 4 Stereo Unbalanced Inputs
PHONO: 4 Stereo Unbalanced Inputs
MICRO: 2 Mono Balanced Inputs
FX RETURN: 1 Stereo Unbalanced Input

Connectors type:
LINE 1-2-3-4: RCA STEREO
PHONO 1-2-3-4: RCA STEREO
MICRO 3: XLR3-F
MICRO 4: Combo XLR3F-6.3mm TRS BAL
FX RETURN: RCA STEREO

Inputs Sensitivity nom/Impedance:
LINE: 0dBV/50kO
PHONO: -40dBV/50kO
MICRO: -50dBV/>1kO
FX RETURN: 0dBV/>6kO

PERFORMANCE:

Frequency Response:
LINE: 10Hz#30kHz -1dB
MICRO: 10Hz#25kHz -1dB
PHONO: RIAA i0.5dB
FX RETURN: 10Hz#50kHz -1dB

THD+N:
LINE: <0.004%
MICRO: <0.7%
PHONO: <0.06%
FX RETURN: <0.001%

CMMR:
MICRO: >75dB @ 1kHz

Signal Noise Ratio:
LINE: >105dB
MICRO: >90dB
PHONO: >100dB
FX RETURN: >110dB

Trim control / Tone control Inputs 1-2-3-4:
INPUTS 1-2-3-4: i 15dB
BASS: +10/-30dB
MID: +10/-25dB
TREBLE: +10/-30dB

Trim control / Tone control Isolator:
BASS: +12/-70dB
MID: +12/-40dB
TREBLE: +12/-70dB

Tone Filter cut frequency at -6dB (slope 12dB/oct):
BASS: 200Hz
MID: 200Hz#6.8kHz
TREBLE: 6.8kHz

Isolator cut frequency at -6dB (slope 24dB/oct):
BASS: 300Hz#4kHz
TREBLE: 4kHz

Analogue Subharmonic Synthesizer:
Input selective filter: 50#120Hz
Harmonics synthesis: 25#60Hz
Max Output level: +12dBV

OUTPUTS:

Number of Outputs:
HOUSE: 1 Stereo Balanced Outputs / 1 Stereo Unbalanced Outputs
BOOTH: 1 Stereo Balanced Outputs / 1 Stereo Unbalanced Outputs
HEADPHONE: 2 Stereo Unbalanced Outputs
FX SEND: 1 Stereo Unbalanced
REC: 1 Stereo Unbalanced

Connectors Type:
HOUSE: XLR3-M STEREO / RCA STEREO
BOOTH: XLR3-M STEREO / RCA STEREO
HEADPHONE: Jack Stereo 6.3mm / Jack Stereo 3.5mm
FX SEND: RCA STEREO
REC: RCA STEREO

Outputs Level/Minimum Load:
HOUSE (BAL): 0dBV/600O 1V *(+12dB 4V)
HOUSE (UNBAL): 0dBV/2.2kO 1V *(+12dB 4V)
BOOTH (BAL): 0dBV/2.2kO 1V *(+12dB 4V)
BOOTH (UNBAL): 0dBV/2.2kO 1V *(+12dB 4V)
REC: 0dBV/10kO
HEADPHONES: 200mO/200O THD 1%
FX SEND: 0dBV/2.2kO

Max Undistorted Output Level:
HOUSE (Electr.BAL): 21dBV (23dBu)
BOOTH (Electr.BAL): 21dBV (23dBu)
HOUSE (UNBAL): 21dBV (23dBu)
BOOTH (UNBAL): 21dBV (23dBu)

MICELLANEOUS
Control Mode: Rotary with Alps Blue Velvet Potentiometers and Alps RK09L potentiometers
Phantom Voltage: 18VDC/5mA Max (Default ON)
Input VU-Meter: LED 12 segments (-38dBV # +10dBV)
House-Mix-Booth VU-Meter: LED 12 segments (-30dBV # +20dBV)
Subharmonic Output VU-Meter: LED 3 Segments (-20dBV / 0dBV / +4dBV)

ELECTRICAL

Power Supply: Internal
AC Mains Voltage: 90-264VAC 47-63Hz
AC Main Connector: 15A IEC inlet connector
Rated power consumption: 39 VA

PHYSICAL
Operating Temperature: -5-C # 45-C / 23-F # 113-F
Operating Humidity: 20 - 90% RH (no condensation)
Storage Temperature: -10-C # 50-C / 14-F # 122-F
Storage Humidit : <90% RH (no condensation)
Operating Humidity: 20 - 90% RH (no condensation)
Installation Options: Desktop or Rack mount with optional accessories
Included Accessories: IEC Cable EU
Dimensions (WxHxD): 34.0 x 8.1 x 37.2 cm / 13.39 x 3.19 x 14.65 in
Weight: 5.32 Kg / 11.73 lb
Shipping Dimensions (WxHxD): 49.5 x 17.5 x 43.5 cm / 19.49 x 6.89 x 17.13 in
Shipping Weight: 6.74 Kg / 14.86 lb

MECHANICAL

Dimensions (without wooden sides) : 400 x 185 x 100mm / 15.7" x 7.2" x 3.9"
Weight : 3.6Kg / 7.94 lbs

Notes: Excellent value as usual from Omnitronic, the PM-202F is a simple, affordable mixer ideal for basic DJing and live sound control. Two channels, microphone input and Bluetooth streaming add up to a versatile setup at a great price.

Supplier's Notes:
Two channel mixer ideal for mobile DJ setups and home use.

Technical specifications

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: Max. 8 W
Protection class: Protection class II
Power connection: Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided)
Frequency range: 20 - 20000 Hz
S/N ratio: >80 dB
THD: <0,1 % at 1 kHz
DJ filter: Per channal: LPF/HPF bipolar,
Control: Bluetooth
Bluetooth device name: PM-202F
Range: Bluetooth: range up to 15m
Crosstalk: >60 dB
Control elements: Crossfader, Crossfade curve control, crossfade reverse switch, FX Parameter control, power switch
Status LED: Power, master level meter
Connections: Input: line/phono via 2 x stereo RCA
Input: line via 2 x stereo RCA
Input: microphone via 1 x 3-pin XLR (F) mounting version
Input: antenna via 1 x SMA (F) mounting version
Input: Earthing connection via 2 x screw terminal
Output: master via 2 x 3-pin XLR (M) mounting version
Output: master via 1 x stereo RCA
Output: rec. via 1 x stereo RCA
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Output: headphones via 1 x 3.5 mm jack (stereo) mounting version
Channels: Input channel: 2 x stereo with Line-Line/Phono-Bluetooth switch via RCA, channel control via 60mm fader, 2-band tone control EQ, gain control, CUE switch
Microphone channel: 1 x mono via XLR, channel control via rotary dial, 2-band tone control EQ
Master output: 1 x stereo via XLR or RCA, channel control via rotary dial, balancecontrol
Headphones output: stereo via jack, channel control via rotary dial, cue mix function
Rec. output: stereo via RCA
Material: Metal
Colour: Black
Housing design: Desktop console housing

Dimensions:

Length: 30,5 cm
Width: 19,0 cm
Height: 11,0 cm
Weight: 2,18 kg

Power cord
Cable length: 2,10 m detachable

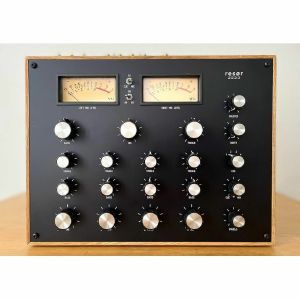

Notes: Four-channel rotary design with two-band channel EQs and three-band master isolator. Analogue VU meters, versatile cueing options and pristine audiophile sound. Lovely stuff.

*** Please note: comes with black wooden panels and with Bass, Mid and Treble knobs in different positions. ***

Supplier's Notes:
Resor 2533 is a 4-channel mixer that covers all four festival seasons. It's a DJ's dream to have four turntables and four CDJs attached. Additionally, you can further customise your mix with external effects via Master Insert.

With added FX-bus, the Resor 2533 FX offers plenty of possibilities by adding an external FX unit and apply those per channel.

Channels 1,2,3: Line / Phono

Channel 4: Line, Line/Line, Line/Phono, Line/Mic or Phono/Mic (see the order form for customizations and prices)

Master Out (XLR, Balanced Stereo), Booth Out (TRS, Balanced Stereo), Record Out (RCA, Unbalanced) and Headphones (TRS, Stereo)

Master Insert (TRS, Unbalanced), Stereo (Tip - Left, Ring - Right, Sleeve - Ground)

2 band Baxandall Equalizer

Bass - boost and cut 12 dB (100 Hz)
Treble - boost and cut 12 dB (10 kHz)

3 band master isolator, 24dB (< -90 dB of attenuation) "full-cut", with maximum boost of 12dB. Crossover frequencies are at 310 Hz and 3100 Hz. True Bypass switch. IC-based and very transparent (FAQ page for more info)

Two NISSEI analogue VU-meters provide a tactile level of L+R Stereo Mix signal (post summing)

Cue Select (route a stereo audio signal of any channel)

Cue/Mix (blends stereo audio signal between Cue and Mix)

Technical specification

Line Inputs

Discrete, Class-A Op-Amps
Measured Line In to Master Out:
Frequency response +/- 0,3 dB, 20 Hz to 20 kHz
THD+N better than 0,004 %
SNR better than -95 dB

Phono Inputs

Discrete, Class-A Op-Amps, Gain 40 dB
Passive RIAA Equalization, polypropylene capacitors, close tolerance
Input impedance is 47 kohm
Input capacitance is 47 pF
Measured Phono In to Master Out:
RIAA accuracy within +/- 0,3 dB (20 Hz - 20 kHz)
THD+N better than 0,02 %
SNR better than -77 dB
Maximum input signal level before distortion 100 mVRMS

Master Output

Balanced XLR
Unbalanced RCA L and R
Impedance < 300 ohm

Booth Output

Balanced TRS
Impedance < 300 ohm

Record Output

Nominal level -10dBV
Impedance < 300 ohm

Crosstalk

Channel Fader offness < -100 dB
Channel L/R separation <-70 dB
Isolator offness < -90 dB
Dimensions

330 mm (W), 250 mm (D), 98 mm (H) - (please note that this does not include Knobs, Headphone Jack on the front side, RCA's and Sockets on the rear side of the mixer)

Weight

Mixer: 4.5 kg
Power Supply: 1 kg
With travel case: 8 kg

Notes: The Sound LAB G103QC Mixer is a mini mixer, ideal for use in confined areas. The product features 2 line/phono inputs, stereo/mono button, 1 mic input and overall volume control, talk-over button, cross fader and headphone output with volume control. Made from high quality metal with mounting holes and anti-scratch plastic feet.
